B17 SUPER BENCH

All New Combination Lathe

Switching from resurfacing brake discs to drums takes merely seconds with the new P2 quick change cutting head. Feed direction is automatically changed as you spin and lock down the head with just one lever! The power plant of the B17 is a quiet DC motor which provides smooth operation across a wide range of discs and drums. The B17 is equipped with our most advanced electronics package which tracks lathe usage and provides service reminders! All of that and it's mounted on a mobile tool cabinet to safely store all your necessary adapters and accessories. You just can't beat the B17's quality, precision and innovation from the folks who perfected on-car lathes!

What's Included

  • Pro-Cut B17 Bench Lathe
  • P2 Quick Change cutting head

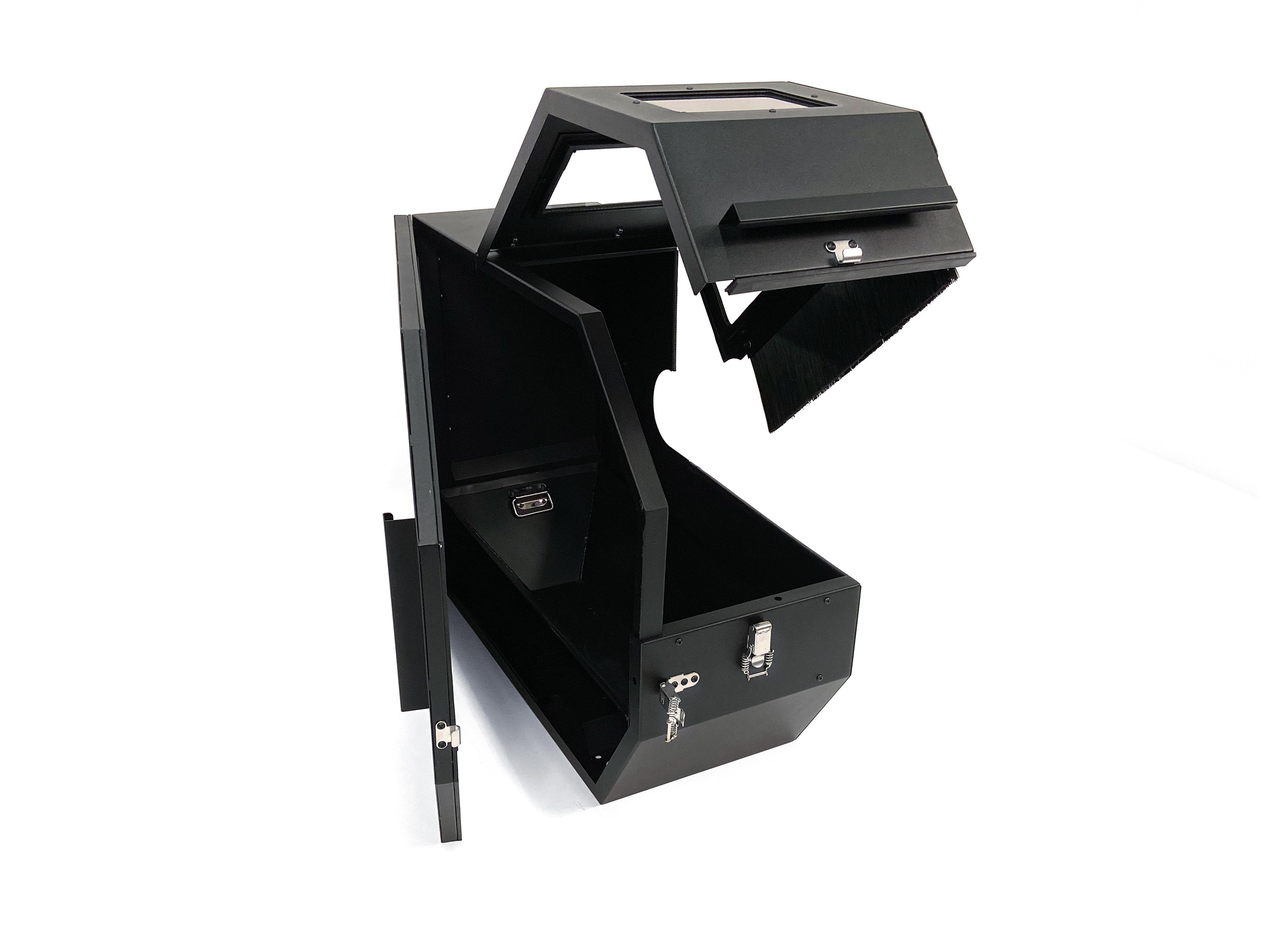

  • Mobile Tool Cabinet
  • Quiet DC Power Plant
  • Adapter kit for cars & light trucks
  • Accessory start-up kit
  • On-site assembly & training by a local Pro-Cut Rep
  • 2 year Parts & Labor warranty

I'D LIKE TO REQUEST...

Machine Specifications

QUICKCHANGE ALL-IN-ONE CUTTING HEAD (Standard)
Max Rotor Thickness 2.25" / 57mm
Max Rotor Face Width 3.50" / 90mm
Max Rotor Diameter 19.50" / 495mm
Max Drum Diameter 26.40" / 670mm
Max Drum Depth 5.90" / 150mm
Rotor Feed Rate 0-006"/Rev · 0-0.17mm/Rev
Brake Type Rotor and Drum
Spindle Speeds Variable 100, 140, 180 RPM
Motor 750W
Spindle Bearings Taper Roller
Double Taper Arbor Yes

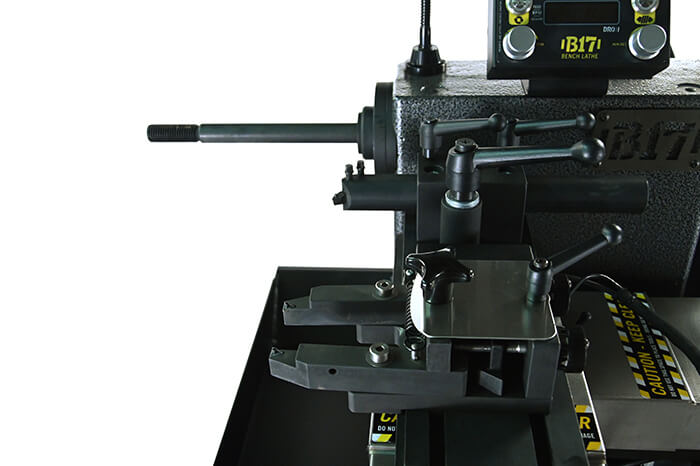

P2 CUTTING HEAD IN DRUM MODE

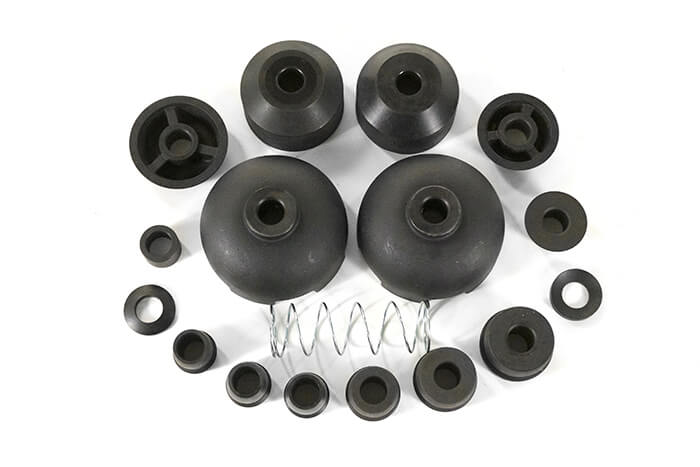

ADAPTER KIT FOR CARS & LIGHT TRUCKS

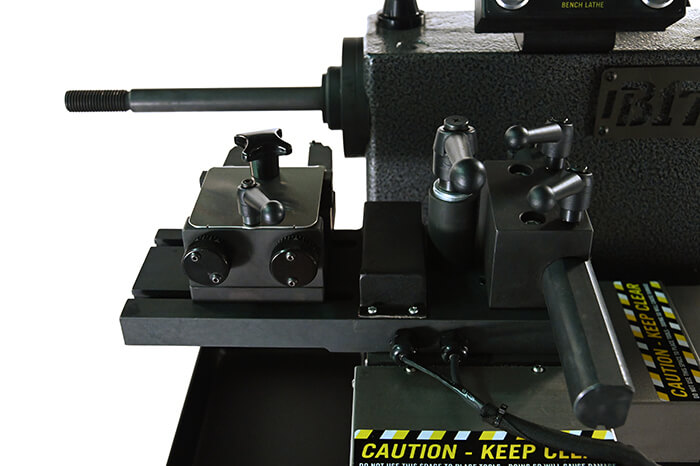

P2 CUTTING HEAD IN DISC MODE

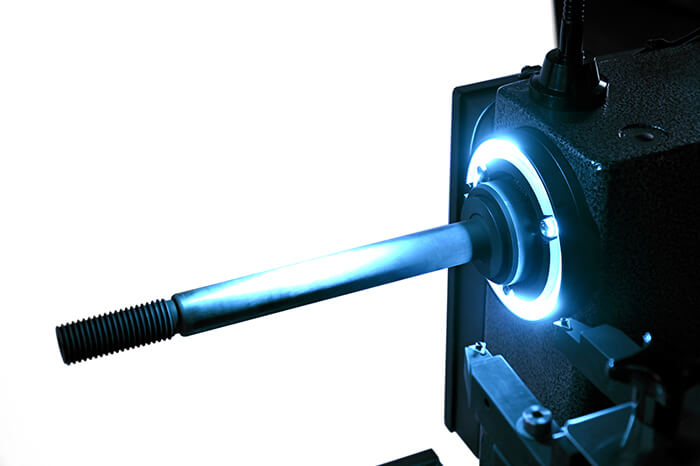

ARBOR RING
LAMP

SELL GREEN, THRILL CUSTOMERS and MAKE MORE MONEY!

Most of the rotors that are thrown away can be saved and made as good as new with a Pro-Cut Rotor Matching System. Even in areas where rust is a challenge you'll find that most rotors can be machined and matched to the hub. Your customer gets a premium brake job without buying un-needed parts...and your shop makes higher profit on the job.
