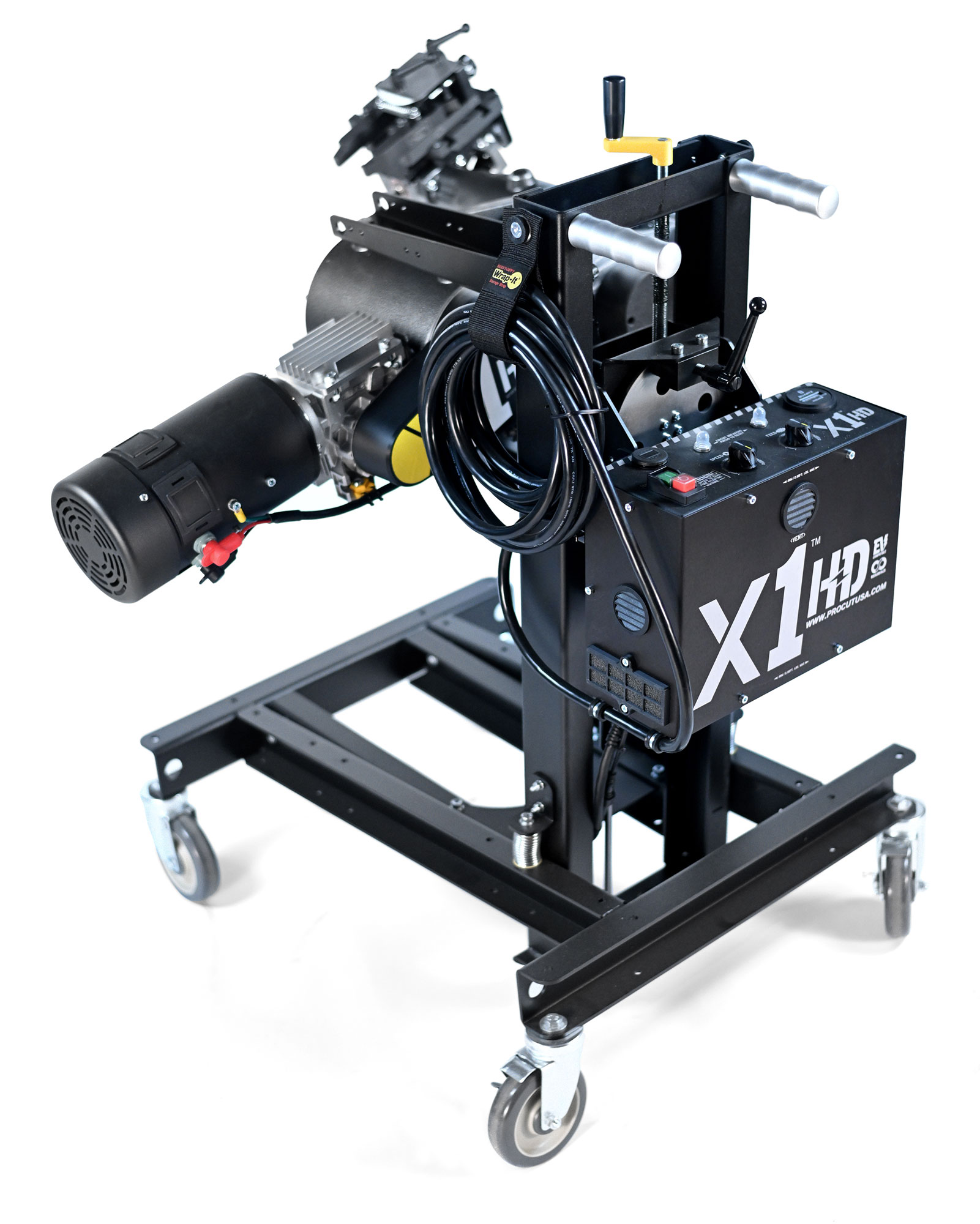

X1

Super Duty DC Powered On-Truck Lathe

The X1is powered by a 48V DC variable speed motor with the power to turn bus and truck axles. It's low range gear box provides 30% more torque while adjustable tool arms and 190mm feed screw allow techs to match-machine the largest rotors in the industry!

What's Included

  • Variable speed 48V DC motor
  • Performance Plus Cutting Head
  • Low-range gear box
  • Adjustable Tool Arms & 190mm Feed Screw

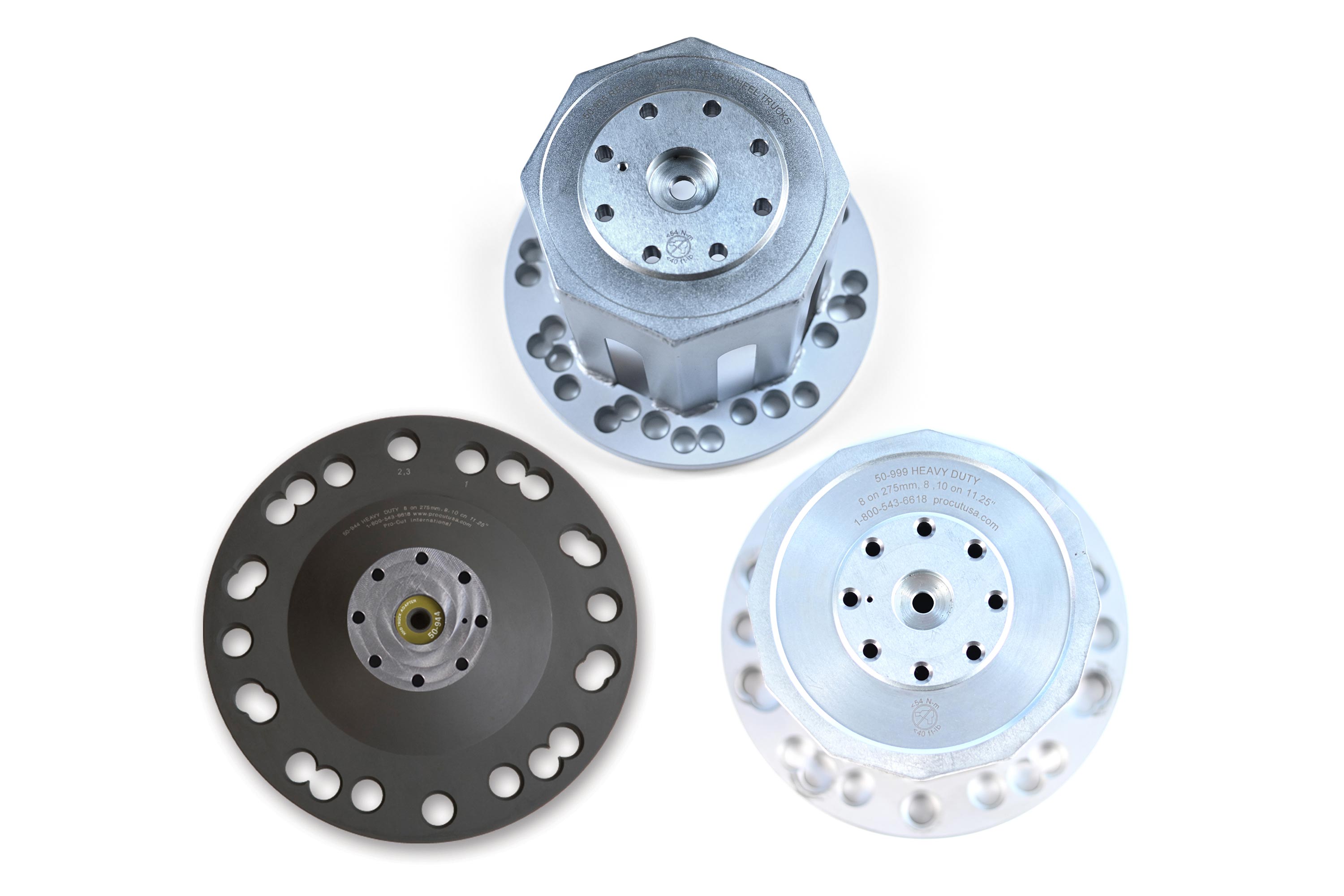

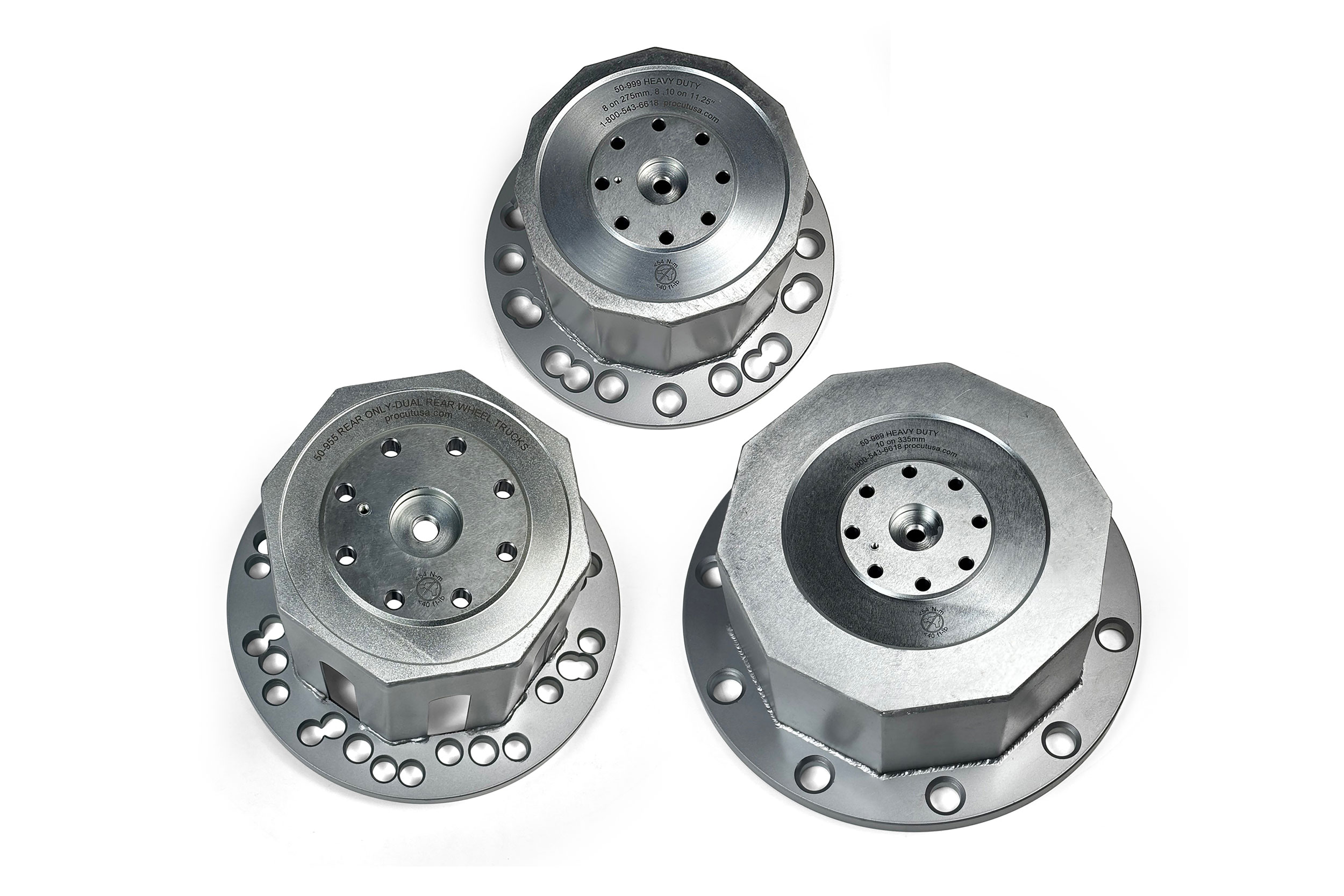

  • Accessories Included
  • 4 Wheel, 4 Axis, Adjustable Trolley

Watch

Machine Specifications

PERFORMANCE PLUS CUTTING SPECS
Max Rotor Thickness .00"
Max Rotor Thickness 0.20"
Max Rotor Diameter 17.1"
Max Friction Face 4.00"
Max Depth of Cut 0.0015" / Side
Weight 8.12 lbs
Spindle Speed 0-90 rpm
Cariage Speed 0.005" / rev
Motor 2 HP Peak
Shipping Weight 350 lbs
Electrical Supply 90-264VAC 50/60Hz 1ph
Feed Distance 7.48"

SELL GREEN, THRILL CUSTOMERS and MAKE MORE MONEY!

The majority of the rotors that are thrown away can been saved and made as good as new with a Pro-Cut Rotor Matching System. Even in areas where rust is a challenge you�ll find that most rotors can be machined and matched to the hub. Your customer gets a premium brake job without buying un-needed parts� and your shop makes higher profit on the job.
