PFM X9

New High Performance Expandable Platform

The PFM X9 combines our best existing technologies, like patented PFM one button computerized compensation system and 4 wheel-4 axis fully adjustable trolley, and combines them with a rigid new X-Frame lathe chassis, powerful belt driven high-torque drivetrain, and super bright 6 LED light to give you a clear path to higher profits! All X9's come with our famous DRO display that includes live run-out, productivity tracking, and lathe diagnostics. X9's are digitally expandable to optional G2X and GYR systems.

What's Included

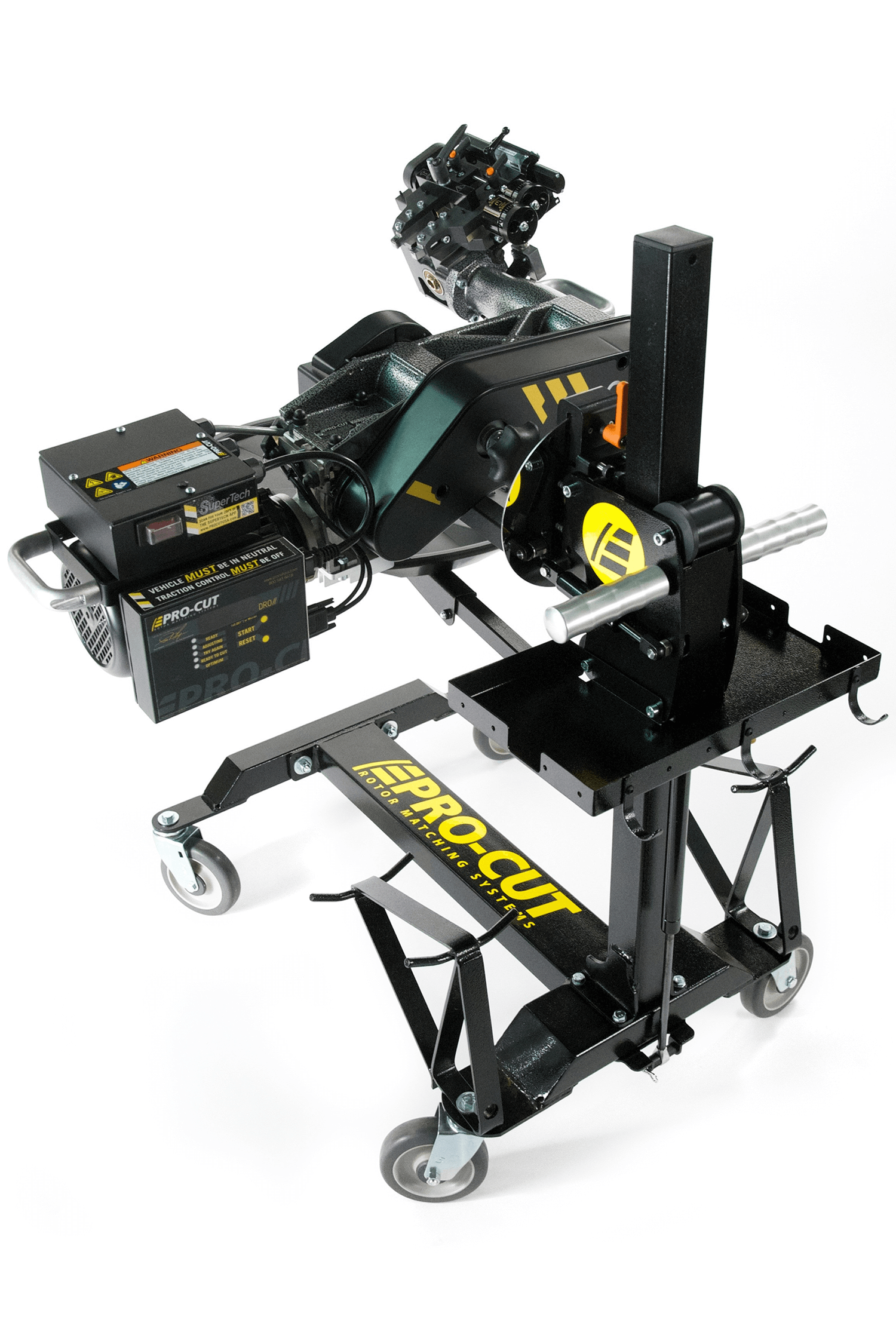

  • Pro-Cut X9 on-car brake lathe
  • DRO computer box (accepts G2X/GYR upgrades)
  • Speed-Lock cutting head
  • Fixed post trolley
  • Adapter packages available from 3 lug cars to Medium Duty trucks and buses
  • All accessories including silencer and cutting bits
  • On-site installation and training

Machine Specifications

SPEED LOCK CUTTING HEAD (Standard)

Maximum Rotor Thickness 1.75"
Minimum Rotor Thickness 0.2"
Maximum Rotor Diameter 16.4" to 17.6"
Maximum Friction Face 3.3"
Maximum Depth of Cut 0.015" / Side
Weight 7.68 lbs
Motor 1.0 HP
Weight 108 lbs
Shipping Weight 200 lbs.
Electrical Supply 110v / 1ph / 60hz
Feed Distance 6.7" (7.48" Opt.)
Start-up Torque 73 ft. lbs.
Working Height Range 21"- 43"

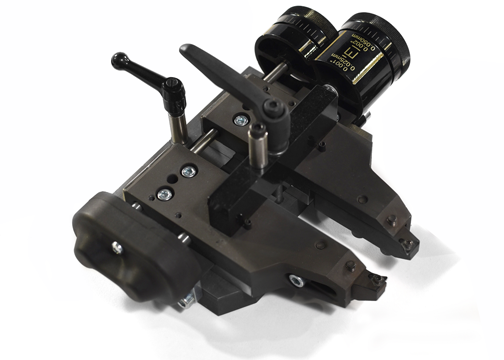

PRECISION-MATCH CUTTING HEAD (Optional)

Maximum Rotor Thickness 2.00"
Minimum Rotor Thickness 0.2"
Maximum Rotor Diameter 15.6" to 17.1"
Maximum Friction Face 3.82"
Maximum Depth of Cut 0.020" / Slide
Weight 9.38 lbs.

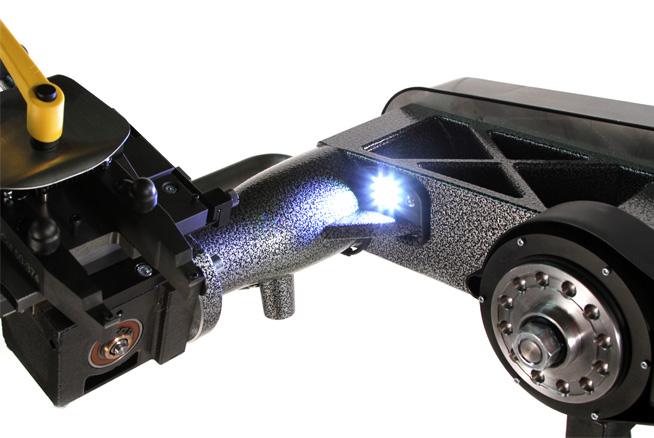

LED TASK LIGHT & X BODY

OPTIONAL: 50-1650 GIB-LESS GEAR BOX
