PFM 9.2 DRO
W/ Gyr Upgrade Package

GuarAnteed In-Spec Repair Every Time!

Captures, stores, and prints data from every brake job!

PFM 9.2 Gyr Upgrade Package Product Details

The GYR changes everything. For the first time a technician can know precisely where the rotor stands vs. spec before, during, and after the cut. And the shop (and customer) can be assured of the quality of each and every brake job. GYR Validated Brake Service directs the technician to make in-spec repairs and captures the finished metrics (rotor thickness and run-out) of every rotor machined! Finished results are automatically saved to the tablet and an on-line database and can be printed for customer and/or your records. The GYR system provides management with the means to set and successfully manage a single, profitable policy for brake repair.

*GYR LICENSE FEE: There is a $395 annual license fee for the vehicle data and updates to the GYR application. This fee is charged on the anniversary of the original purchase date.

GYR Key Features

  1. Captures VIN number of every vehicle serviced. Also records date, time, technician, causal code, and vehicle mileage.
  2. Directs the technician to make in-spec repairs every time.
  3. Automatically captures finished dimensions (thicknesses and run-out) of every serviced rotor.
  4. Provides customer-friendly print-outs summarizing each repair.
  5. Data from each brake job is automatically saved to the tablet pc and on-line database for easy reference.
  6. Built-in business center allows managers to track lathe use and profitability.

How the GYR Works

  1. Technician scans vehicle, VIN number captured and rotor specs loaded to tablet pc.
  2. GYR application directs the technician to stay within vehicle specifications as rotor is serviced.
  3. Data is saved to tablet pc and on-line. Results can also be printed out.
  4. A GYR brake job is still 9 minutes / rotor! Increased quality, consistency, and proof of service with no loss in efficiency!

What’s Included

  1. DATALOGIC QuickScan barcode scanner
  2. CTL 2goPAD Tablet PC
  3. N470 1.83 GHz Processor w/ Microsoft Windows 7
  4. GYR Application with vehicle database
  5. Quik-mount Command Center

PFM 9.2 DRO W/ GYR Upgrade Package Complete Specifications:

COMPLETE:   $18,911

LIST PRICE BASED ON: 5 Adapter Package

1 YEAR WARRANTY - PARTS AND LABOR

*ADD $748 FOR 7 ADAPTER PACKAGE

GYR UPGRADE ONLY:   $7,130

*INCLUDES REQUIRED G2X PACKAGE

Maximum Rotor Thickness: 1.75" Carriage Speed: 0.005" / rev.
Minimum Rotor Thickness: 0.2" Motor: 1.00 HP
Maximum Rotor Diameter: 17.2" Weight: 90 lbs.
Minimum Rotor Diameter: 4" Electrical Supply: 120v / 1ph / 60hz
Maximum Depth of Cut: 0.020" / Side Shipping Weight: 200 lbs.
Spindle Speed: 123 RPM

PFM 9.2 DRO Base Package Options:

VERSATILE INDUSTRY STANDARD!

Pro-Cut PFM 9.2 DRO      Base Unit Package

NEW DRO (Digital Run-Out) "Live"! Every new PFM 9.2 now comes with a precision matched on-board rate sensor and a "Live" digital run-out display to increase accuracy and help verify that you get a "Perfect Brake Job. Every Time!" DRO also includes ROI tracking capability to validate your investment. Also included is our exclusive Speed-Lock cutting head with for speed, accuracy and smoother cuts.

COMPLETE: $11,781

LIST PRICE BASED ON: 5 Adapter Package

1 YEAR WARRANTY - PARTS AND LABOR

*ADD $748 FOR 7 ADAPTER PACKAGE

PROVIDES LIVE ROTOR THICKNESS READINGS!

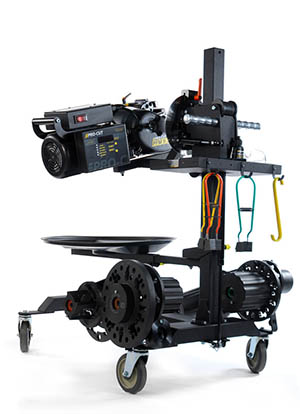

Pro-Cut PFM 9.2 DRO      w/ G2X Upgrade

The G2X upgrade is based on an innovative ALL NEW parallel-arm cutting head which features over-sized adjustment dials and a built-in micrometer. The cutting head plugs into Pro-Cut's standard on-board computer to provide LIVE digital read-out of rotor thickness as the tech sets cut depth and machines the rotor. The technician has 100% control of the finished rotor thickness BEFORE making the cut!

COMPLETE: $14,326

LIST PRICE BASED ON: 5 Adapter Package

1 YEAR WARRANTY - PARTS AND LABOR

*ADD $748 FOR 7 ADAPTER PACKAGE

G2X UPGRADE ONLY: $2,545
