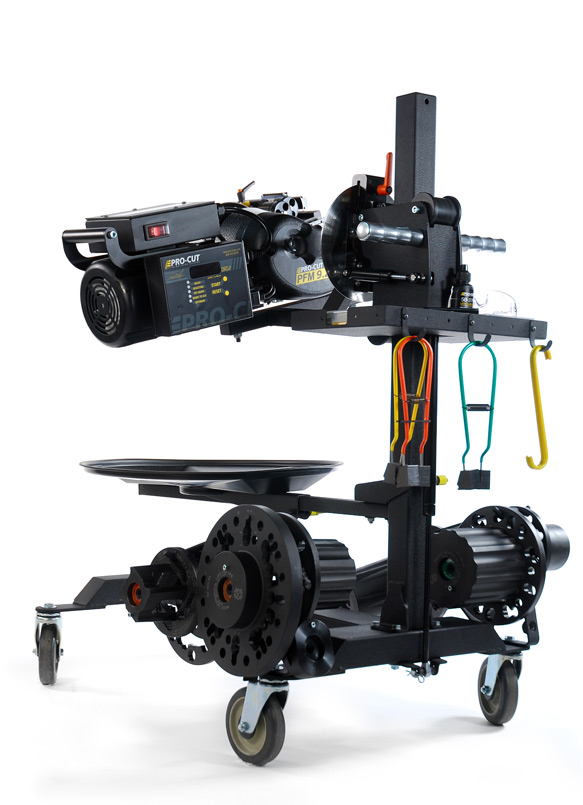

PFM 9.2 DRO
W/ G2X Upgrade Package

Provides live rotor thickness readings!

PFM 9.2 DRO W/ G2X Upgrade Package Product Details

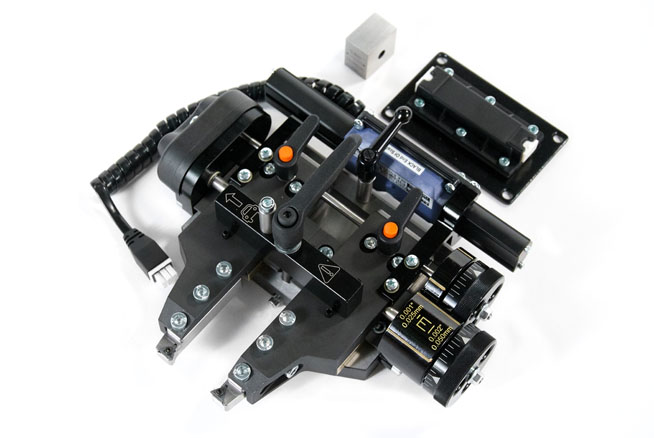

The G2X upgrade is based on an innovative ALL NEW parallel-arm cutting head which features over-sized adjustment dials and a built-in micrometer. The cutting head plugs into Pro-Cut’s standard on-board computer to provide LIVE digital read-out of rotor thickness as the tech sets cut depth and machines the rotor.

G2X Key Features

  1. Rotory dial cutting head puts controls in plain sight, right at the tech’s fingertips. No more reaching to the back of the cutting head.
  2. Extendable tool arms provide reach for oversized rotors or can be offset to accomodate discs with different swept areas front to back.
  3. Live digital read-out of rotor thickness allows technicians to KNOW precisely where they are vs. specification at every step of the machining process. No searching for a micrometer, it’s always at hand! And all math and guess work is eliminated!

How the G2X Works

  1. The G2X cutting head requires no tools for set-up. Simply release the lock handle, set the head in position and secure by tightening.
  2. The display screen automatically gives digital thicknesses any time the cutting arms are adjusted.
  3. The screen stays fixed on the thickness reading while adjustments are made but will default to an alternating screen showing thickness and run-out readings once adjustments are completed.

 *Note: thickness can be shown in either inches or millimeters.

What’s Included

  1. 50-1200 parallel-arm cutting head
  2. Integrated linear transducer
  3. Gauge pick-up module (GPM) unit

PFM 9.2 DRO w/ G2X Upgrade Package Complete Specifications:

COMPLETE:   $14,326

LIST PRICE BASED ON: 5 Adapter Package

1 YEAR WARRANTY - PARTS AND LABOR

*ADD $748 FOR 7 ADAPTER PACKAGE

G2X UPGRADE ONLY:   $2,545

Maximum Rotor Thickness: 1.75" Carriage Speed: 0.005" / rev.
Minimum Rotor Thickness: 0.2" Motor: 1.00 HP
Maximum Rotor Diameter: 17.2" Weight: 90 lbs.
Minimum Rotor Diameter: 4" Electrical Supply: 120v / 1ph / 60hz
Maximum Depth of Cut: 0.020" / Side Shipping Weight: 200 lbs.
Spindle Speed: 123 RPM

PFM 9.2 DRO Base Package Options:

VERSATILE INDUSTRY STANDARD!

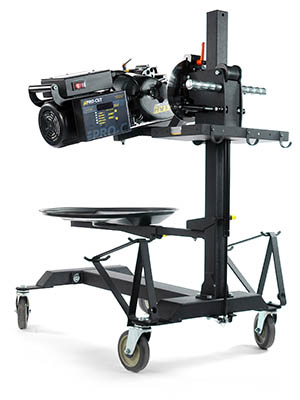

Pro-Cut PFM 9.2 DRO      Base Unit Package

NEW DRO (Digital Run-Out) "Live"! Every new PFM 9.2 now comes with a precision matched on-board rate sensor and a "Live" digital run-out display to increase accuracy and help verify that you get a "Perfect Brake Job. Every Time!" DRO also includes ROI tracking capability to validate your investment. Also included is our exclusive Speed-Lock cutting head with for speed, accuracy and smoother cuts.

COMPLETE: $11,781

LIST PRICE BASED ON: 5 Adapter Package

1 YEAR WARRANTY - PARTS AND LABOR

*ADD $748 FOR 7 ADAPTER PACKAGE

GUARANTEED IN-SPEC REPAIR EVERY TIME!

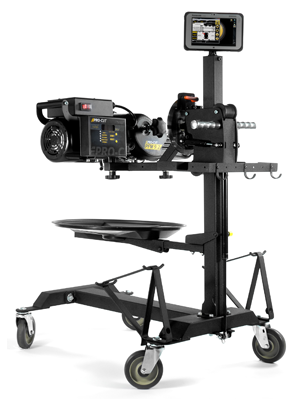

Pro-Cut PFM 9.2 DRO      w/ GYR Upgrade

The GYR changes everything. For the first time a technician can know precisely where the rotor stands vs. spec before, during, and after the cut. And the shop (and customer) can be assured of the quality of each and every brake job. GYR Validated Brake Service directs the technician to make in-spec repairs and captures the finished metrics (rotor thickness and run-out) of every rotor machined! Finished results are automatically saved to the tablet and an on-line database and can be printed for customer and/or your records. The GYR system provides management with the means to set and successfully manage a single, profitable policy for brake repair.

COMPLETE: $18,911

LIST PRICE BASED ON: 5 Adapter Package

1 YEAR WARRANTY - PARTS AND LABOR

*ADD $748 FOR 7 ADAPTER PACKAGE

GYR UPGRADE ONLY: $7,130

*INCLUDES REQUIRED G2X PACKAGE
